Creating button sequences

A sequence of commands (or macro) allows you to configure multiple commands to be sent when you press a single button on your remote or remote's screen. For example: if you use a PIN/password on your cable/satellite box to purchase movies you can program a remote or screen button to automatically send the PIN numbers.



A sequence is unique for each Activity and will only send commands to devices included within that Activity. It can contain up to 25 commands and delays. There is no limit to the number of sequences you can create. Let's create a sequence using the above PIN example.

Using the desktop software

  1. Sign in using the MyHarmony desktop software.
  2. Select your remote from the gallery.
  3. Select the Buttons tab on the left side of the screen.
  4. In either the Screen options or Remote buttons section, select the Activity for which you'd like to create a sequence for (ie. Watch TV).
  5. Click Go.

Sequences created in the Screen options menu are also available in the Remote buttons menu for that same Activity.

MyHarmony - Create a sequence
  1. Select the Sequences tab and press Add Sequence

Harmony 600/650/700 MyHarmony - Create a sequence
Other remotes MyHarmony - Create a sequence
  1. Name your sequence. Try giving your sequence a name that represents what it does. For example, 'Send DVR PIN'.
  2. Click + Add Step to begin adding commands.
  3. Continue adding line items until your sequence is complete.
    • You may add commands for any device used in this Activity.
    • Click Add Delay if you need a brief pause between any two commands.
  4. Click Save.
MyHarmony - Create a sequence
  1. You may now assign the sequence to a screen or remote button.
    Learn more about assigning commands to your screen or remote buttons.
MyHarmony - Create a sequence
  1. You are now complete. Remember to sync your remote after making any changes.

Using the mobile app

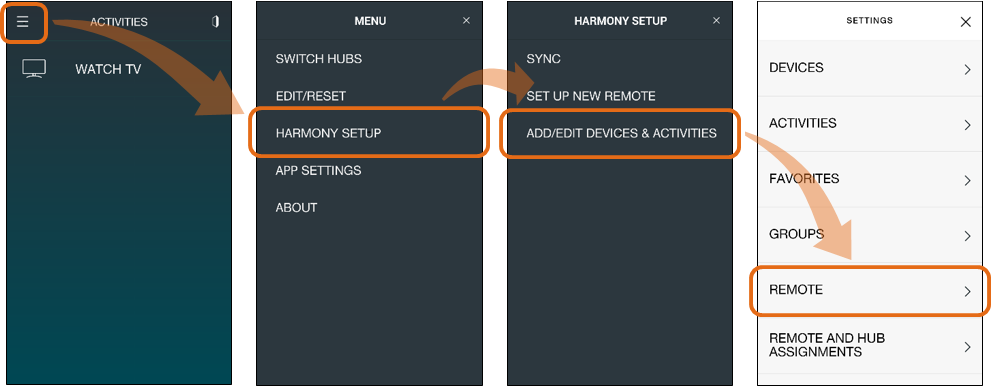

  1. From the Harmony app, press MENU.
  2. Select HARMONY SETUP, then ADD/EDIT DEVICES & ACTIVITIES.

  3. Harmony App - Create Button Sequence

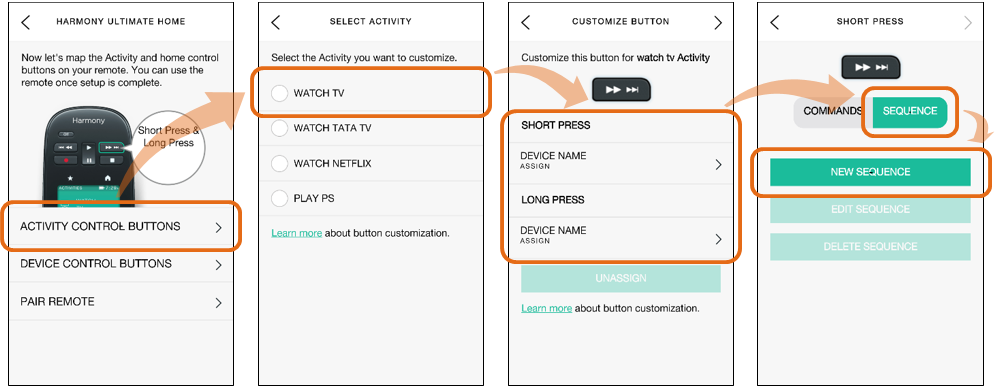

  4. Select REMOTE, then ACTIVITY CONTROL BUTTONS.
    1. Select the Activity for which you would like to create a sequence.
    2. Select the button for which you wish to assign a sequence.
  5. Select DEVICE NAME, then SEQUENCE and NEW SEQUENCE.
  6. Enter a name for your sequence, then select ADD A STEP.
  7. Follow the steps to assign additional commands and/or delays.

  8. Harmony App - Create Button Sequence
600 650 700 Home Control Hub Smart Keyboard Link One Smart Control Companion Touch Ultimate Ultimate Home Ultimate One Elite 950
